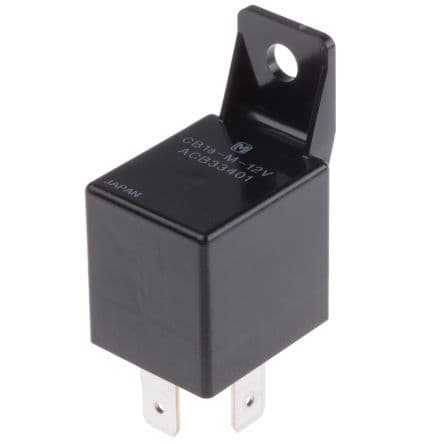

General purpose electromechanical relay featuring a 12VDC coil with 117mA current and 1.4W power consumption. This SPST relay offers a 40A contact current rating and 14VDC contact voltage rating, with Silver, Cadmium, and Gold contact material. Designed for chassis or panel mounting with quick connect termination, it operates within a -40°C to 85°C temperature range and has a 15ms operate and release time.
Current Rating40A
MountingChassis Mount, Panel, Brackets
Power1.4W
Quick Jump:
Technical Specifications
Panasonic CB1A-M-12V technical specifications.
General
Coil Current
117mA
Coil Power
1.4W
Coil Resistance
103R
Coil Type
Non-Latching
Coil Voltage (DC)
12V
Contact Current Rating
40A
Contact Material
Silver, Cadmium, Gold
Current Rating
40A
Depth
22mm
Height
25mm
Lead Free
Lead Free
Length
30mm
Life (Hours)
10Hour
Max Current Rating
40A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
14V
Mount
Chassis Mount, Panel, Brackets
Operate Time
15ms
Package Quantity
50
Packaging
Bulk
Power Consumption
1.4W
Reach SVHC Compliant
Unknown
Release Time
15ms
RoHS Compliant
Yes
Series
CB
Termination
Quick Connect
Throw Configuration
SPST
DC Rated Voltage
14V
Weight
33g
Width
22mm
Compliance
RoHS
Compliant
Datasheet
Panasonic CB1A-M-12V Datasheet
Download the complete datasheet for Panasonic CB1A-M-12V to view detailed technical specifications.
