Technical Specifications

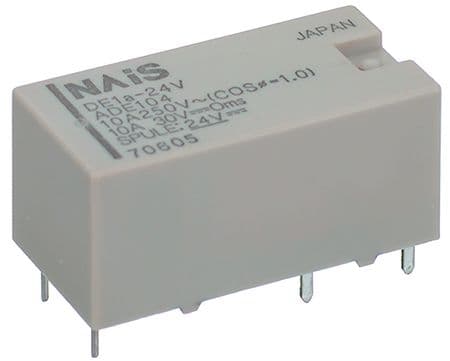

Panasonic DE1a-L2-24V technical specifications.
General
Contact Arrangement
SPST-NO
Contact Form
1 Form A
DC Coil Voltage
24V
Coil Current
8.3mA
Coil Resistance
2.88KOhm
Maximum Pick-Up Voltage
16.8VDC
Maximum AC Switching Voltage
440V
Maximum DC Switching Voltage
230V
Maximum Switching Current
10A
Maximum Switching Power
300W|2.5kVA
Mounting
Through Hole
Termination Style
PC Pin
Number of Terminals
8
Relay Construction
Latching Double Coil
Operate Time
10ms
Coil Suppression Diode
No
Push to Test Button
No
Min Operating Temperature
-40°C
Max Operating Temperature
70°C
Compliance
RoHS
Yes
RoHS Version
2011/65/EU, 2015/863
