SPDT signal relay with a 12VDC coil voltage and 2A contact current rating. Features gold/silver contact material and plating, 250VAC/220VDC voltage ratings, and a 200mW coil power. Through-hole mounting with PC pin termination, this general-purpose relay operates within a -40°C to 70°C temperature range and offers a 10ms operate time and 5ms release time. UL and CSA approved, it is RoHS compliant and has a mechanical life of 500,000 hours.
PackageDIP
Current Rating2A
MountingThrough Hole, PCB, Board
Power200mW
Quick Jump:
Technical Specifications

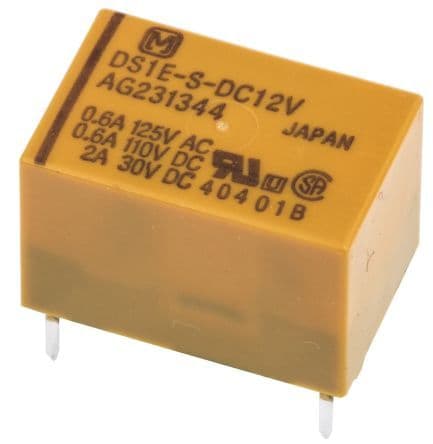

Panasonic DS1E-S-DC12V technical specifications.
General
Approvals
UL, CSA
Package/Case
DIP
Coil Current
16.7mA
Coil Power
200mW
Coil Resistance
720R
Coil Type
Non-Latching
Coil Voltage (DC)
12V
Contact Current Rating
2A
Contact Material
Gold, Silver
Contact Plating
Gold, Silver
Current Rating
2A
Depth
9.9mm
Height
9.9mm
Lead Free
Lead Free
Length
15mm
Life (Hours)
500000Hour
Max Current Rating
2A
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
220V
Mount
Through Hole, PCB, Board
Operate Time
10ms
Package Quantity
50
Packaging
Rail/Tube
Power Consumption
200mW
Radiation Hardening
No
Reach SVHC Compliant
No
Relay Function
SPDT
Relay Type
General Purpose
Release Time
5ms
RoHS Compliant
Yes
Series
DS
Termination
PC Pin
Throw Configuration
SPDT
Voltage Rating (AC)
250V
DC Rated Voltage
220V
Weight
3.2g
Compliance
RoHS
Compliant
Datasheet
Panasonic DS1E-S-DC12V Datasheet
Download the complete datasheet for Panasonic DS1E-S-DC12V to view detailed technical specifications.
