Electromechanical relay featuring DPDT (2 Form C) configuration for general-purpose applications. Coil operates at 5VDC with 200mW power consumption and 40mA current. Contacts rated for 2A switching current and 220VDC/250VAC maximum voltage, with gold/silver plating for enhanced conductivity. Through-hole mounting with PC pin termination, offering a 10ms operate time and 5ms release time. UL and CSA approved, with an IP67 rating and RoHS compliance.
PackageDIP
Current Rating2A
MountingThrough Hole, PCB
Power200mW
Quick Jump:
Technical Specifications
Panasonic DS2E-S-DC5V technical specifications.
General
| Application(s) | GENERAL PURPOSE |
| Approvals | UL, CSA |
| Package/Case | DIP |
| Coil Current | 40mA |
| Coil Power | 200mW |
| Coil Resistance | 125R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 2A |
| Contact Material | Gold, Silver |
| Contact Plating | Gold, Silver |
| Current Rating | 2A |
| Depth | 9.9mm |
| Height | 9.9mm |
| Lead Free | Lead Free |
| Length | 20mm |
| Life (Hours) | 100000000Hour |
| Max Current Rating | 2A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 220V |
| Mount | Through Hole, PCB |
| Operate Time | 10ms |
| Package Quantity | 50 |
| Packaging | Case |
| Power Consumption | 200mW |
| Radiation Hardening | No |
| Ratings | IP67 |
| Reach SVHC Compliant | No |
| Relay Function | DPDT |
| Relay Type | General Purpose |
| Release Time | 5ms |
| RoHS Compliant | Yes |
| Series | DS |
| Switching Current | 2A |
| Termination | PC Pin |
| Throw Configuration | DPDT |
| Type | Electromechanical |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 220V |
| Weight | 4g |
| Width | 20mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic DS2E-S-DC5V Datasheet
Download the complete datasheet for Panasonic DS2E-S-DC5V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

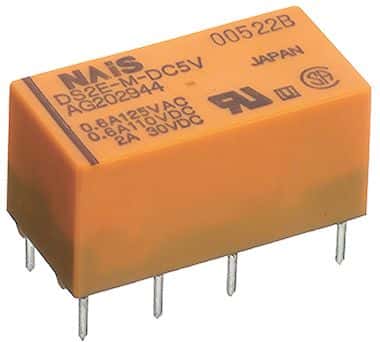

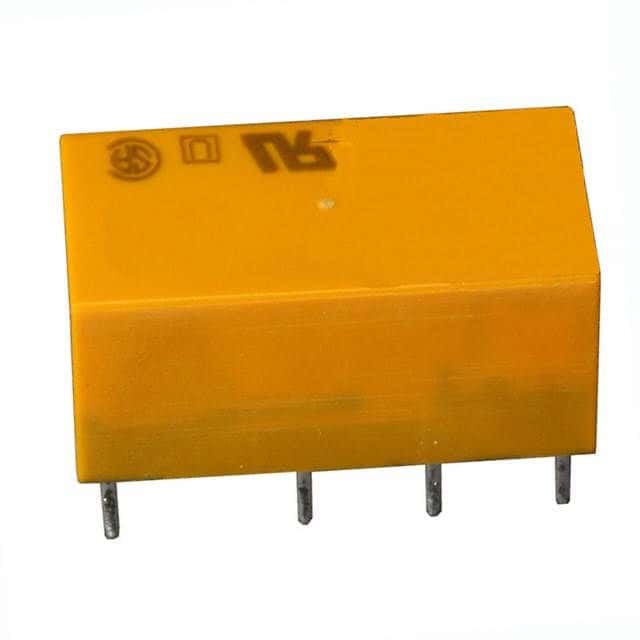

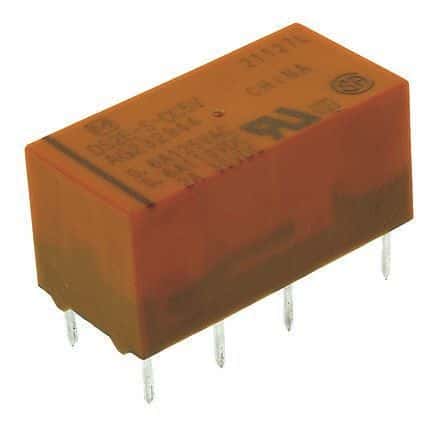

Product Images
