Technical Specifications
Panasonic DSP1A-L-DC3V technical specifications.
General
Coil Current
50mA
Coil Power
150mW
Coil Resistance
60R
Coil Type
Latching, Single Coil
Coil Voltage (DC)
3V
Contact Current Rating
8A
Contact Material
Tin, Silver
Lead Free
Lead Free
Max Operating Temperature
60°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
30V
Operate Time
10ms
Package Quantity
50
Packaging
Carton
Relay Type
General Purpose
Release Time
5ms
RoHS Compliant
No
Series
DSP
Termination
PC Pin
Throw Configuration
SPST
Compliance
RoHS
Not Compliant
Datasheet
Panasonic DSP1A-L-DC3V Datasheet
Download the complete datasheet for Panasonic DSP1A-L-DC3V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

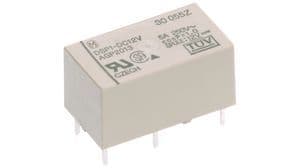

Product Images
