The Panasonic DZ2J033M0L is a Zener diode with a Zener voltage of 3.3V and a voltage tolerance of 5%. It has a maximum power dissipation of 200mW and a maximum operating temperature of 150°C. The diode is available in a 2-pin SC-90 package and is surface mountable. It is RoHS compliant and has an impedance of 130 ohms.
MountingSurface Mount
Power200mW
Quick Jump:
Technical Specifications
Panasonic DZ2J033M0L technical specifications.
General
| Height | 0.7mm |
| Impedance | 130R |
| Length | 1.7mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 200mW |
| Max Reverse Leakage Current | 20uA |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 200mW |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Tolerance | 2.5% |
| Voltage Tolerance | 5% |
| Width | 1.25mm |
| Zener Voltage | 3.3V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic DZ2J033M0L Datasheet
Download the complete datasheet for Panasonic DZ2J033M0L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

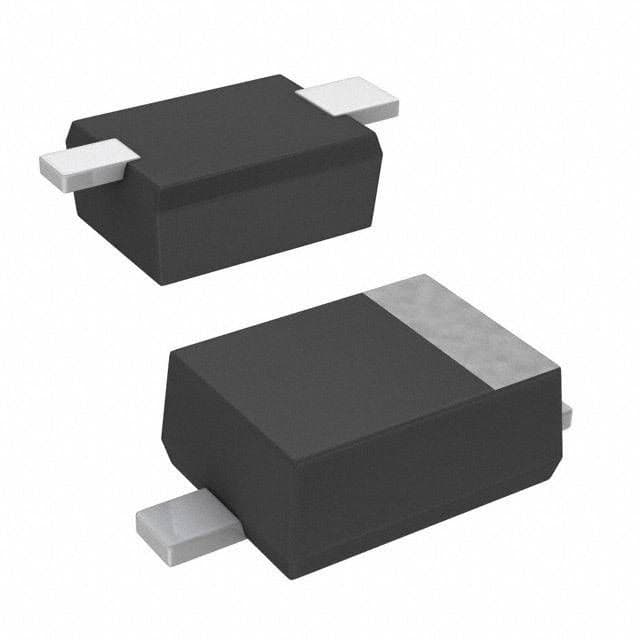

Product Images
