Radial aluminum electrolytic capacitor with 1mF capacitance and 16V voltage rating. Features 20% tolerance, 680mA ripple current, and a 2000-hour life at 85°C. Dimensions are 10mm diameter and 16mm height, with a 5mm lead pitch. Operating temperature range is -40°C to 85°C.
PackageRadial
Voltage16V
Storage16mm
Capacitance1mF
Quick Jump:
Technical Specifications
Panasonic ECA-1CM102 technical specifications.
General
| Capacitance | 1mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 10mm |
| Dissipation Factor | 0.2% |
| Height | 16mm |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Lead/Base Style | Straight |
| Leakage Current | 3uA |
| Length | 16mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 680mA |
| Ripple Current (AC) | 680mA |
| RoHS Compliant | Yes |
| Series | M |
| Size | 16mm |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| Voltage Rating (AC) | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECA-1CM102 Datasheet
Download the complete datasheet for Panasonic ECA-1CM102 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

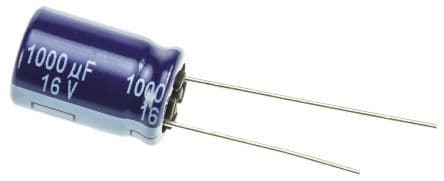

Product Images
