Radial aluminum electrolytic capacitor, polarized, featuring 3.3mF capacitance and a 25V DC rated voltage. This through-hole component offers a 20% tolerance, 1.3A ripple current, and a leakage current of 3uA. With a 16mm diameter and 25mm height, it operates from -40°C to 85°C and boasts a 2000-hour life. The capacitor is RoHS compliant and constructed with an aluminum dielectric.
PackageRadial
Voltage25V
Capacitance3.3mF
Voltage Rating25V
Quick Jump:
Technical Specifications
Panasonic ECA-1EM332 technical specifications.
General
| Capacitance | 3.3mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 16mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.2% |
| Height | 25mm |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 7.5mm |
| Lead/Base Style | Straight |
| Leakage Current | 3uA |
| Length | 25mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 1.3A |
| RoHS Compliant | Yes |
| Series | M |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECA-1EM332 Datasheet
Download the complete datasheet for Panasonic ECA-1EM332 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

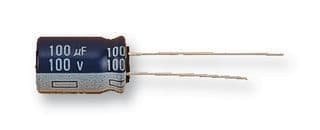

Product Images
