Radial aluminum electrolytic capacitor with 10µF capacitance and 50V DC rated voltage. Features a 20% tolerance, 3µA leakage current, and 65mA ripple current. Operating temperature range from -40°C to 85°C with a 2000-hour life rating. Through-hole mounting with a 2mm lead pitch and 0.5mm lead diameter.
PackageRadial
Voltage50V
Storage11mm
Capacitance10uF
Quick Jump:
Technical Specifications
Panasonic ECA-1HM100 technical specifications.
General
Capacitance
10uF
Package/Case
Radial
Construction
RADIAL
Diameter
5mm
Dielectric Material
Aluminium
Dissipation Factor
0.12%
Height
11mm
Lead Diameter
0.5mm
Lead Free
Lead Free
Lead Pitch
2mm
Lead/Base Style
Straight
Leakage Current
3uA
Length
11mm
Life (Hours)
2000Hour
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
65mA
Ripple Current (AC)
65mA
RoHS Compliant
Yes
Series
M
Size
11mm
Termination
Radial
Tolerance
20%
Voltage
50V
Voltage Rating
50V
Voltage Rating (AC)
50V
DC Rated Voltage
50V
Compliance
RoHS
Compliant
Datasheet
Panasonic ECA-1HM100 Datasheet
Download the complete datasheet for Panasonic ECA-1HM100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

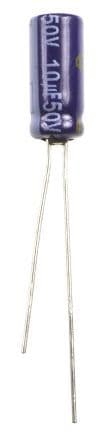

Product Images
