Polarized aluminum electrolytic capacitor, 63V DC rated voltage, 220uF capacitance with a 20% tolerance. Features a radial construction with a 5mm lead pitch, 0.6mm lead diameter, and straight lead style for through-hole PCB mounting. Operates within a -40°C to 85°C temperature range, offering 2000 hours of life at rated conditions. Includes a 450mA ripple current capability and a leakage current of 3uA.
PackageRadial
Voltage63V
Storage16mm
Capacitance220uF
Quick Jump:
Technical Specifications
Panasonic ECA-1JM221 technical specifications.
General
| Capacitance | 220uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 10mm |
| Dissipation Factor | 0.11% |
| Height | 16mm |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Lead/Base Style | Straight |
| Leakage Current | 3uA |
| Length | 16mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 450mA |
| RoHS Compliant | Yes |
| Series | M |
| Size | 16mm |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 63V |
| Voltage Rating | 63V |
| Voltage Rating (AC) | 63V |
| DC Rated Voltage | 63V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECA-1JM221 Datasheet
Download the complete datasheet for Panasonic ECA-1JM221 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

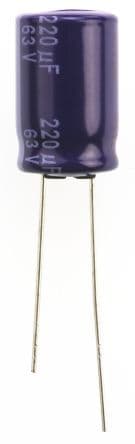

Product Images
