Aluminum electrolytic capacitor with 2200µF capacitance and 63V DC rated voltage. Features 20% tolerance, 1.4A ripple current, and 3µA leakage current. Radial package with 7.5mm lead pitch, 0.8mm lead diameter, and 18mm diameter. Operating temperature range from -40°C to 85°C with a 2000-hour life rating. Through-hole mounting for PCB applications.
PackageRadial
Voltage63V
Capacitance2.2mF
Voltage Rating63V
Quick Jump:
Technical Specifications
Panasonic ECA-1JM222 technical specifications.
General
| Capacitance | 2.2mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 18mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.13% |
| Height | 35.5mm |
| Height - Seated (Max) | 1.476inch |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 7.5mm |
| Lead/Base Style | Straight |
| Leakage Current | 3uA |
| Length | 35.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 50 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 1.4A |
| RoHS Compliant | Yes |
| Series | M |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 63V |
| Voltage Rating | 63V |
| DC Rated Voltage | 63V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECA-1JM222 Datasheet
Download the complete datasheet for Panasonic ECA-1JM222 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

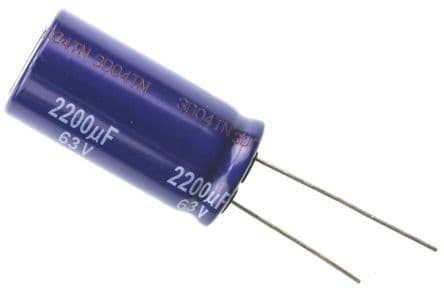

Product Images
