Aluminum electrolytic capacitor with 220µF capacitance and 35V DC rated voltage. Features a 20% tolerance, 8mm diameter, and 11.5mm height in a radial package. Offers 350mA ripple current, 3µA leakage current, and a 2000-hour life at 85°C. Through-hole mounting with a 3.5mm lead pitch.
PackageRadial
Voltage35V
Capacitance220uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic ECA-1VM221 technical specifications.
General
Capacitance
220uF
Package/Case
Radial
Construction
RADIAL
Diameter
8mm
Dielectric Material
Aluminium
Dissipation Factor
0.14%
Height
11.5mm
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Pitch
3.5mm
Lead/Base Style
Straight
Leakage Current
3uA
Length
11.5mm
Life (Hours)
2000Hour
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
350mA
Ripple Current (AC)
350mA
RoHS Compliant
Yes
Series
M
Termination
Radial
Tolerance
20%
Voltage
35V
Voltage Rating
35V
Voltage Rating (AC)
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Panasonic ECA-1VM221 Datasheet
Download the complete datasheet for Panasonic ECA-1VM221 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

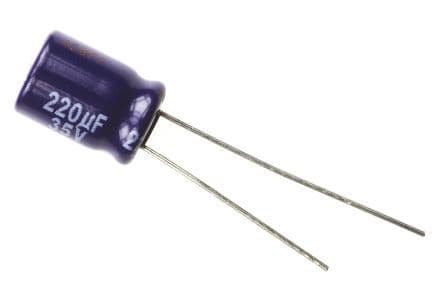

Product Images
