Radial aluminum electrolytic capacitor with 100µF capacitance and 100V voltage rating. Features a 20% tolerance, 265mA ripple current, and a dissipation factor of 0.08%. Designed for through-hole PCB mounting with a 5mm lead pitch and 10mm diameter. Operates across a -55°C to 105°C temperature range with a leakage current of 3µA and a rated life of 2000 hours.
PackageRadial
Voltage100V
Storage20mm
Capacitance100uF
Quick Jump:
Technical Specifications
Panasonic ECA-2AHG101 technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.08% |
| Height | 20mm |
| Height - Seated (Max) | 0.866inch |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Lead/Base Style | Straight |
| Leakage Current | 3uA |
| Length | 20mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 265mA |
| Ripple Current (AC) | 265mA |
| RoHS Compliant | Yes |
| Series | NHG |
| Size | 20mm |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 100V |
| Voltage Rating | 100V |
| Voltage Rating (AC) | 100V |
| DC Rated Voltage | 100V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECA-2AHG101 Datasheet
Download the complete datasheet for Panasonic ECA-2AHG101 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

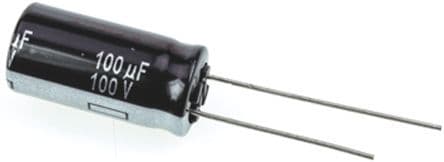

Product Images
