Radial aluminum electrolytic capacitor with 470uF capacitance and 20% tolerance. Features a 100V DC rated voltage, 715mA ripple current, and a 2000-hour life at 105°C. This through-hole component has a 7.5mm lead pitch, 0.8mm lead diameter, and measures 16mm in diameter by 25mm in height. Operating temperature range is -55°C to 105°C with a leakage current of 3uA.
PackageRadial
Voltage100V
Capacitance470uF
Voltage Rating100V
Quick Jump:
Technical Specifications
Panasonic ECA-2AHG471 technical specifications.
General
| Capacitance | 470uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 16mm |
| Dissipation Factor | 0.08% |
| Height | 25mm |
| Height - Seated (Max) | 1.063inch |
| Lead Diameter | 0.8mm |
| Lead Pitch | 7.5mm |
| Lead/Base Style | Straight |
| Leakage Current | 3uA |
| Length | 25mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 715mA |
| Ripple Current (AC) | 715mA |
| RoHS Compliant | Yes |
| Series | NHG |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 100V |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECA-2AHG471 Datasheet
Download the complete datasheet for Panasonic ECA-2AHG471 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

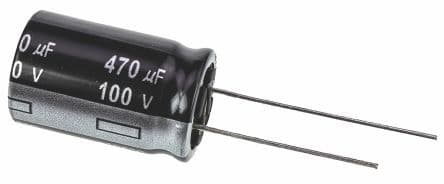

Product Images
