Aluminum electrolytic capacitor with 100µF capacitance and 250V DC rated voltage. Features a 20% tolerance, 530mA ripple current capability, and a 2000-hour life at 85°C. This radial component has a 7.5mm lead pitch, 16mm diameter, and 31.5mm height, suitable for through-hole PCB mounting. RoHS compliant and lead-free.
PackageRadial
Voltage250V
Storage31.5mm
Capacitance100uF
Quick Jump:
Technical Specifications
Panasonic ECA-2EM101 technical specifications.
General
Capacitance
100uF
Package/Case
Radial
Construction
RADIAL
Diameter
16mm
Dielectric Material
Aluminium
Dissipation Factor
0.18%
Height
31.5mm
Lead Diameter
0.8mm
Lead Free
Lead Free
Lead Pitch
7.5mm
Lead/Base Style
Straight
Length
31.5mm
Life (Hours)
2000Hour
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Through Hole, PCB
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
530mA
RoHS Compliant
Yes
Series
M
Size
31.5mm
Termination
Radial
Tolerance
20%
Voltage
250V
Voltage Rating
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Panasonic ECA-2EM101 Datasheet
Download the complete datasheet for Panasonic ECA-2EM101 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

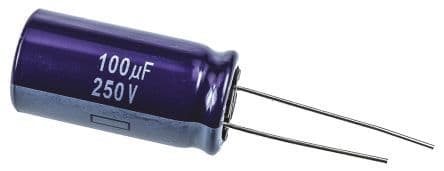

Product Images
