Aluminum electrolytic capacitor, 10µF capacitance, 50V voltage rating, and 20% tolerance. Features a radial package with a 2.5mm lead pitch, 6.3mm diameter, and 5mm height. Operates from -40°C to 85°C with a ripple current of 35mA and a life of 1000 hours. RoHS compliant and lead-free.
PackageRadial
Voltage50V
Capacitance10uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Panasonic ECE-A1HKS100I technical specifications.
General
| Capacitance | 10uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 6.3mm |
| Dissipation Factor | 0.1% |
| Height | 5mm |
| Height - Seated (Max) | 0.197inch |
| Lead Diameter | 0.45mm |
| Lead Free | Lead Free |
| Lead Pitch | 2.5mm |
| Leakage Current | 3mA |
| Length | 5mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 2000 |
| Packaging | Ammo Pack |
| Radiation Hardening | No |
| Ripple Current | 35mA |
| RoHS Compliant | Yes |
| Series | KS |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECE-A1HKS100I Datasheet
Download the complete datasheet for Panasonic ECE-A1HKS100I to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

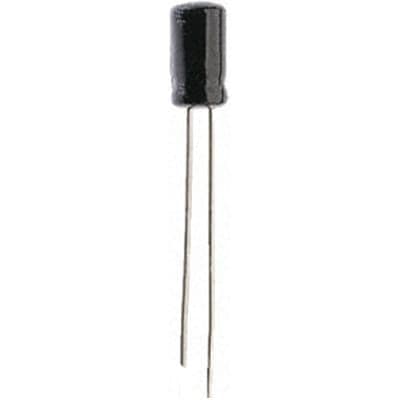

Product Images
