Surface mount film capacitor with 3.3nF capacitance and 16V DC rated voltage. Features a 5% tolerance and PPS dielectric material, operating from -55°C to 125°C. Housed in a 0805 (2012 metric) SMD package with dimensions of 2mm (L) x 1.25mm (W) x 0.9mm (H). This RoHS compliant component is supplied on tape and reel.
Package0805
Voltage16V
Capacitance3.3nF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic ECH-U1C332JX5 technical specifications.
General
| Capacitance | 3.3nF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Construction | Flat |
| Depth | 1.25mm |
| Dielectric | PPS |
| Dielectric Material | Polyphenylene |
| Height | 0.9mm |
| Lead Free | Lead Free |
| Length | 2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | ECHU(X) |
| Termination | SMD/SMT |
| Tolerance | 5% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Weight | 0.000194oz |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECH-U1C332JX5 Datasheet
Download the complete datasheet for Panasonic ECH-U1C332JX5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

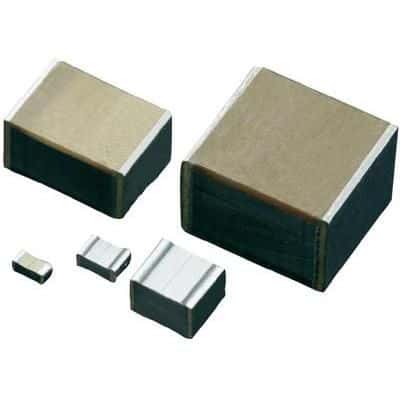

Product Images
