Technical Specifications
Panasonic ECH-U1H272JB5 technical specifications.
General
| Capacitance | 2.7nF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Construction | Flat |
| Depth | 1.25mm |
| Dielectric | PPS |
| Dielectric Material | Polyphenylene |
| Height | 0.8mm |
| Height - Seated (Max) | 0.039inch |
| Lead Free | Contains Lead |
| Length | 2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | ECH-U(B) |
| Termination | Solder |
| Tolerance | 5% |
| DC Rated Voltage | 50V |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECH-U1H272JB5 Datasheet
Download the complete datasheet for Panasonic ECH-U1H272JB5 to view detailed technical specifications.
No datasheet is available for this part.

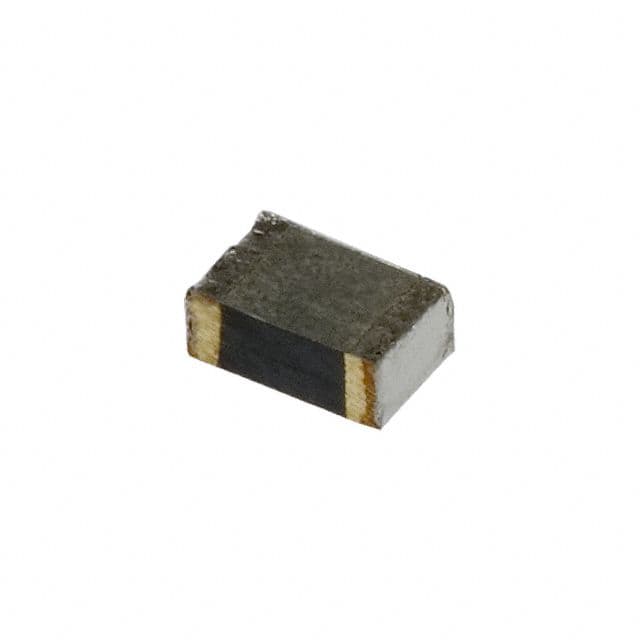

Product Images
