Stacked metallized PPS film chip capacitor, 4.7nF capacitance, 50V voltage rating. Features a 1206 (3216 metric) surface mount case code with ±2% tolerance. Constructed with a polyphenylene sulfide dielectric, offering a wide operating temperature range from -55°C to 125°C. Packaged in tape and reel for automated assembly.
Package1206
Voltage50V
Capacitance4.7nF
Voltage Rating50V
Quick Jump:
Technical Specifications
Panasonic ECH-U1H472GX5 technical specifications.
General
| Capacitance | 4.7nF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Construction | Flat |
| Depth | 1.6mm |
| Dielectric | PPS |
| Dielectric Material | Polyphenylene |
| Height | 0.9mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | ECHU(X) |
| Termination | SMD/SMT |
| Tolerance | 2% |
| Voltage | 50V |
| Voltage Rating | 50V |
| Voltage Rating (AC) | 50V |
| DC Rated Voltage | 50V |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECH-U1H472GX5 Datasheet
Download the complete datasheet for Panasonic ECH-U1H472GX5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

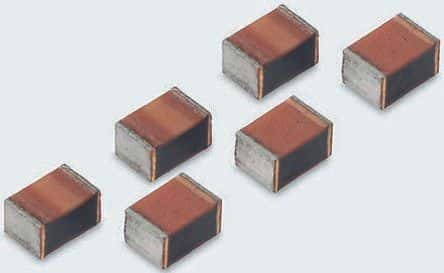

Product Images
