Aluminum electrolytic capacitor with 10mF capacitance and 50V DC rating. Features 20% tolerance, 36mR ESR at 120Hz, and 4.97A ripple current capability. Designed for through-hole mounting with a 10mm lead pitch and snap-in termination. Operates from -40°C to 85°C with a 3000-hour life expectancy. Dimensions are 25mm diameter by 50mm height.
PackageRadial
Voltage50V
Capacitance10mF
Voltage Rating50V
Quick Jump:
Technical Specifications
Panasonic ECO-S1HP103CA technical specifications.
General
| Capacitance | 10mF |
| Package/Case | Radial |
| Diameter | 25mm |
| Dissipation Factor | 30% |
| ESR (Equivalent Series Resistance) | 36mR |
| Height | 50mm |
| Height - Seated (Max) | 1.969inch |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Length | 6.3mm |
| Lead Pitch | 10mm |
| Length | 50mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 4.97A |
| RoHS Compliant | Yes |
| Series | TS-UP |
| Termination | Snap in |
| Test Frequency | 120Hz |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECO-S1HP103CA Datasheet
Download the complete datasheet for Panasonic ECO-S1HP103CA to view detailed technical specifications.
No datasheet is available for this part.

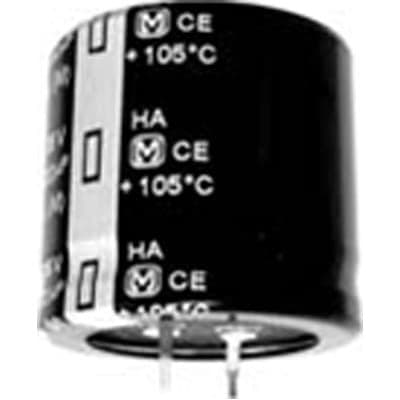

Product Images
