Aluminum electrolytic capacitor with 330µF capacitance and 400V DC rated voltage. Features a 105°C maximum operating temperature, 3000-hour life expectancy, and 1.35A ripple current. Snap-in termination with a 10mm lead pitch, 0.8mm lead diameter, and 6.3mm lead length. Radial package measures 30mm in diameter and 50mm in height, with a 402mΩ ESR at 120Hz. RoHS compliant.
PackageRadial
Voltage400V
Capacitance330uF
Voltage Rating400V
Quick Jump:
Technical Specifications
Panasonic ECO-S2GA331DA technical specifications.
General
| Capacitance | 330uF |
| Package/Case | Radial |
| Diameter | 30mm |
| Dissipation Factor | 15% |
| ESR (Equivalent Series Resistance) | 402mR |
| Height | 50mm |
| Height - Seated (Max) | 2.047inch |
| Lead Diameter | 0.8mm |
| Lead Length | 6.3mm |
| Lead Pitch | 10mm |
| Length | 50mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 1.35A |
| RoHS Compliant | Yes |
| Series | TS-HA |
| Termination | Snap in |
| Test Frequency | 120Hz |
| Tolerance | 20% |
| Voltage | 400V |
| Voltage Rating | 400V |
| DC Rated Voltage | 400V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECO-S2GA331DA Datasheet
Download the complete datasheet for Panasonic ECO-S2GA331DA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

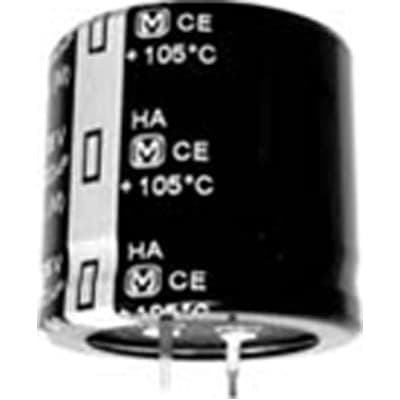

Product Images
