Technical Specifications
Panasonic ECQ-E1334KF technical specifications.
General
| Capacitance | 330nF |
| Package/Case | Radial |
| Construction | RADIAL |
| Dielectric | PET |
| Dielectric Material | Polyester |
| Height | 10.7mm |
| Lead Free | Lead Free |
| Lead Length | 20mm |
| Lead Pitch | 22.5mm |
| Lead/Base Style | Straight |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Series | ECQ-E(F) |
| Termination | PC Pins |
| Tolerance | 10% |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECQ-E1334KF Datasheet
Download the complete datasheet for Panasonic ECQ-E1334KF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

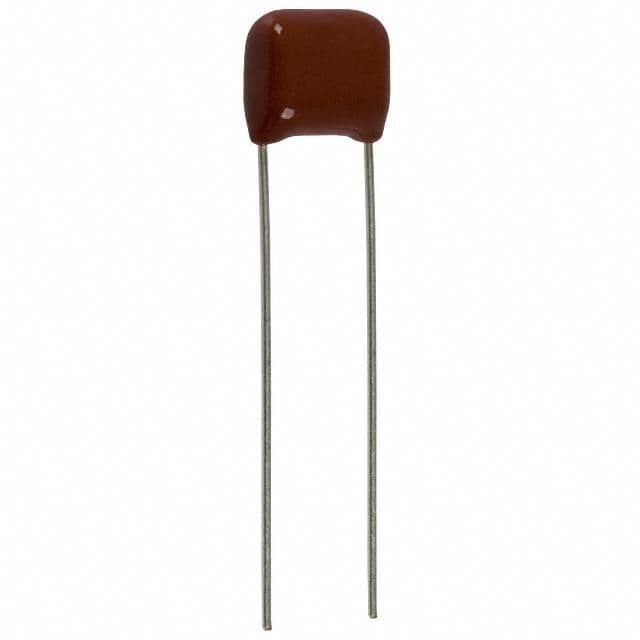

Product Images
