Technical Specifications
Panasonic ECQ-E2275JB technical specifications.
General
| Capacitance | 2.7uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Depth | 9.3mm |
| Dielectric | PET |
| Dielectric Material | Polyester |
| Height | 22mm |
| Lead Diameter | 0.8mm |
| Lead Pitch | 17.5mm |
| Length | 20.8mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Series | ECQ-E(B) |
| Termination | Radial |
| Tolerance | 5% |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
| Width | 9.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECQ-E2275JB Datasheet
Download the complete datasheet for Panasonic ECQ-E2275JB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

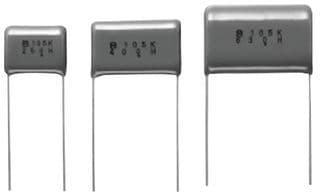

Product Images
