Radial film capacitor with 1µF capacitance and 400V voltage rating. Features a PET dielectric, 5% tolerance, and a maximum operating temperature of 105°C. Dimensions are 26mm (length) x 8.5mm (width) x 18mm (height) with a 22.5mm lead pitch. Through-hole mounting with straight PC pin terminations, supplied in bulk packaging.
PackageRadial
Voltage400V
Capacitance1uF
Voltage Rating400V
Quick Jump:
Technical Specifications
Panasonic ECQ-E4105JF technical specifications.
General
| Capacitance | 1uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Depth | 8.5mm |
| Dielectric | PET |
| Dielectric Material | Polyester |
| Height | 18mm |
| Lead Diameter | 0.8mm |
| Lead Length | 20mm |
| Lead Pitch | 22.5mm |
| Lead/Base Style | Straight |
| Length | 26mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | ECQ-E(F) |
| Termination | PC Pins |
| Tolerance | 5% |
| Voltage | 400V |
| Voltage Rating | 400V |
| Voltage Rating (AC) | 400V |
| DC Rated Voltage | 400V |
| Width | 8.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECQ-E4105JF Datasheet
Download the complete datasheet for Panasonic ECQ-E4105JF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

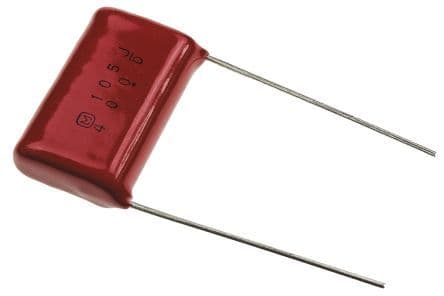

Product Images
