Technical Specifications
Panasonic ECQ-E6223KF technical specifications.
General
| Capacitance | 22nF |
| Construction | RADIAL |
| Depth | 5.3mm |
| Dielectric | PET |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Length | 20mm |
| Lead Pitch | 10mm |
| Length | 12mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Tolerance | 10% |
| Voltage Rating | 630V |
| DC Rated Voltage | 630V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECQ-E6223KF Datasheet
Download the complete datasheet for Panasonic ECQ-E6223KF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

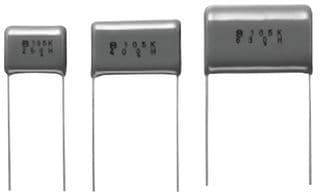

Product Images
