Aluminum electrolytic capacitor with 33µF capacitance and 50V DC rated voltage. Features 20% tolerance, 91mA ripple current, and 16.5µA leakage current. Radial leaded package with 8mm diameter, 7mm height, 2.5mm lead pitch, and 0.45mm lead diameter. Operates from -55°C to 105°C with a 1000-hour life expectancy. Through-hole mounting and RoHS compliant.
PackageRadial
Voltage50V
Capacitance33uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Panasonic EEA-GA1H330 technical specifications.
General
| Capacitance | 33uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 8mm |
| Height | 7mm |
| Lead Diameter | 0.45mm |
| Lead Pitch | 2.5mm |
| Leakage Current | 16.5uA |
| Length | 7mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 91mA |
| RoHS Compliant | Yes |
| Series | GA |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEA-GA1H330 Datasheet
Download the complete datasheet for Panasonic EEA-GA1H330 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

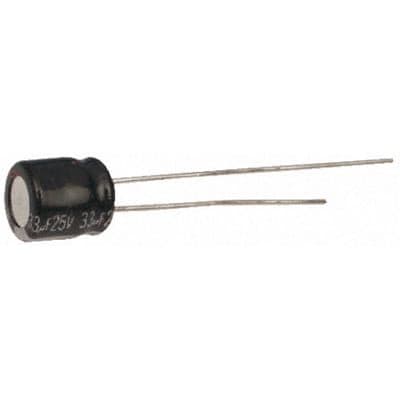

Product Images
