Radial aluminum electrolytic ultracapacitor with 3.3F capacitance and 2.5V DC rated voltage. Features a 3.5mm lead pitch, 0.6mm lead diameter, and 600um lead length for through-hole PCB mounting. Operates within a -25°C to 60°C temperature range with 300mR ESR and 1000 hours of life. RoHS compliant and lead-free.
PackageRadial
Voltage2.5V
Capacitance3.3F
Voltage Rating2.5V
Quick Jump:
Technical Specifications
Panasonic EEC-HZ0E335 technical specifications.
General
| Capacitance | 3.3F |
| Package/Case | Radial |
| Construction | RADIAL |
| Depth | 20mm |
| Diameter | 8mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 300mR |
| Height | 20mm |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Length | 600um |
| Lead Pitch | 3.5mm |
| Length | 20mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | HZ |
| Termination | Radial |
| Tolerance | 40% |
| Voltage | 2.5V |
| Voltage Rating | 2.5V |
| DC Rated Voltage | 2.5V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEC-HZ0E335 Datasheet
Download the complete datasheet for Panasonic EEC-HZ0E335 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

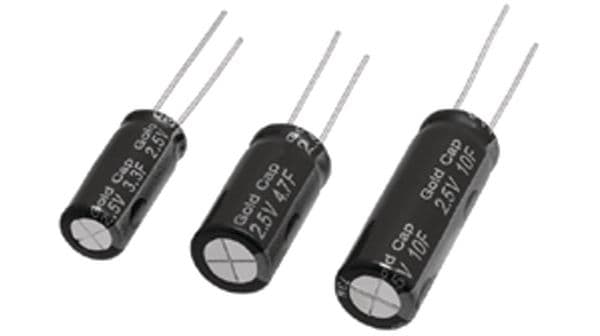

Product Images
