680mF radial aluminum electrolytic capacitor with 5.5V DC rated voltage and 80% tolerance. Features 40R ESR, 2000-hour life at 85°C, and through-hole PCB mounting. Cylindrical construction with 21.5mm diameter, 9.5mm height, and 5mm lead pitch. RoHS compliant and lead-free.
PackageRadial
Voltage5.5V
Capacitance680mF
Voltage Rating5.5V
Quick Jump:
Technical Specifications
Panasonic EEC-RF0H684 technical specifications.
General
| Capacitance | 680mF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Depth | 9.5mm |
| Diameter | 21.5mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 40R |
| Height | 9.5mm |
| Lead Diameter | 0.5mm |
| Lead Free | Lead Free |
| Lead Length | 6mm |
| Lead Pitch | 5mm |
| Length | 9.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | RF |
| Termination | Radial |
| Tolerance | 80% |
| Voltage | 5.5V |
| Voltage Rating | 5.5V |
| DC Rated Voltage | 5.5V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEC-RF0H684 Datasheet
Download the complete datasheet for Panasonic EEC-RF0H684 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

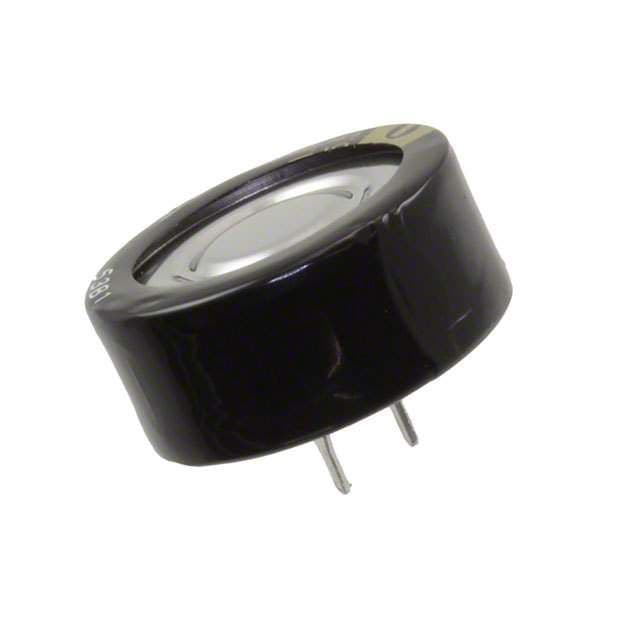

Product Images
