Supercapacitor, 470mF capacitance, 5.5V voltage rating. Features 30 Ohms ESR, radial cylindrical construction with 20mm lead pitch, and 1mm lead diameter. Operates from -25°C to 70°C with a 1000-hour life at 70°C. Through-hole mounting, RoHS compliant, and supplied in bulk packaging.
PackageRadial
Voltage5.5V
Capacitance470mF
Voltage Rating5.5V
Quick Jump:
Technical Specifications
Panasonic EEC-S5R5H474 technical specifications.
General
| Capacitance | 470mF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Depth | 19mm |
| Diameter | 19mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 30R |
| Height | 6.5mm |
| Height - Seated (Max) | 0.256inch |
| Lead Diameter | 1mm |
| Lead Free | Lead Free |
| Lead Length | 1mm |
| Lead Pitch | 20mm |
| Length | 6.5mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Orientation | Horizontal |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SG |
| Termination | Radial |
| Tolerance | 80% |
| Voltage | 5.5V |
| Voltage Rating | 5.5V |
| Width | 19.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEC-S5R5H474 Datasheet
Download the complete datasheet for Panasonic EEC-S5R5H474 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

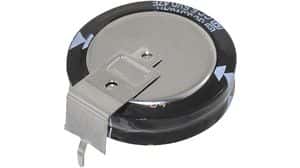

Product Images
