Surface mount aluminum electrolytic capacitor, 10µF capacitance, 16V DC rated voltage, and 20% tolerance. Features a 2000-hour life at 85°C, 28mA ripple current, and 3µA leakage current. Radial can construction with SMD terminations, measuring 4mm diameter, 5.4mm height, and 5.5mm length. Designed for PCB mounting, compliant with RoHS and AEC-Q200 standards.
PackageRadial
Voltage16V
Capacitance10uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic EEE-1CA100SR technical specifications.
General
Capacitance
10uF
Package/Case
Radial
Construction
Cylindrical
Diameter
4mm
Dielectric Material
Aluminium
Height
5.4mm
Lead Free
Lead Free
Lead Length
1.8mm
Lead Pitch
1mm
Leakage Current
3uA
Length
5.5mm
Life (Hours)
2000Hour
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount, PCB
Package Quantity
2000
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Ripple Current
28mA
Ripple Current (AC)
28mA
RoHS Compliant
Yes
Series
S
Termination
SMD/SMT
Tolerance
20%
Voltage
16V
Voltage Rating
16V
Voltage Rating (AC)
16V
DC Rated Voltage
16V
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-1CA100SR Datasheet
Download the complete datasheet for Panasonic EEE-1CA100SR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

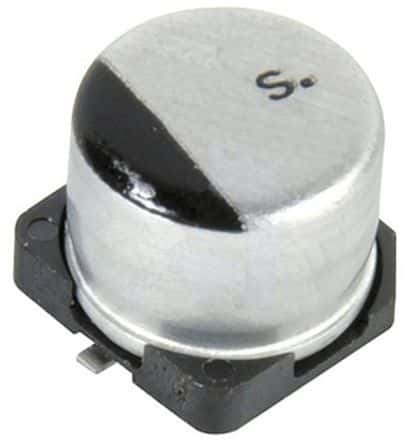

Product Images
