Surface mount aluminum electrolytic capacitor with 47µF capacitance and 20% tolerance. Features a 25V DC rated voltage and a ripple current of 70mA. Constructed with a cylindrical radial package measuring 6.3mm in diameter, 5.4mm in height, and 5.5mm in length. Operates within a temperature range of -40°C to 85°C with a rated life of 1000 hours. This RoHS compliant component is supplied on tape and reel, with 1000 units per package, and meets AEC-Q200 standards.
PackageRadial
Capacitance47uF
Voltage Rating25V
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Panasonic EEE-1EA470WP technical specifications.
General
| Capacitance | 47uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 6.3mm |
| Height | 5.4mm |
| Lead Free | Lead Free |
| Length | 5.5mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 70mA |
| Ripple Current (AC) | 70mA |
| RoHS Compliant | Yes |
| Series | S |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-1EA470WP Datasheet
Download the complete datasheet for Panasonic EEE-1EA470WP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

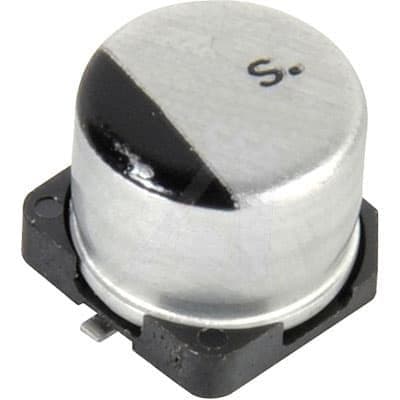

Product Images
