Aluminum electrolytic capacitor with 100nF capacitance and 50V DC voltage rating. Features 20% tolerance, 1mA ripple current, and a 1000-hour life at 85°C. Surface mountable in a cylindrical radial package (3mm diameter, 5.4mm height). Lead-free and RoHS compliant, suitable for automotive applications with AEC-Q200 rating. Supplied on tape and reel.
PackageRadial
Capacitance100nF
Voltage Rating50V
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Panasonic EEE-1HS0R1SR technical specifications.
General
| Capacitance | 100nF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 3mm |
| Height | 5.4mm |
| Lead Free | Lead Free |
| Length | 5.4mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 1mA |
| Ripple Current (AC) | 1mA |
| RoHS Compliant | Yes |
| Series | S |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-1HS0R1SR Datasheet
Download the complete datasheet for Panasonic EEE-1HS0R1SR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

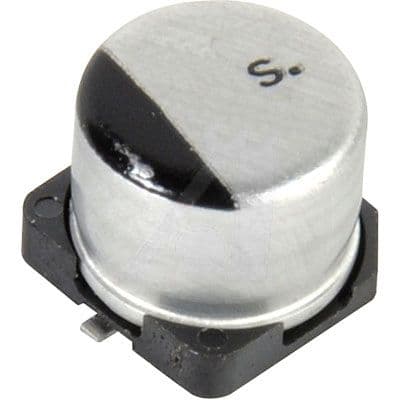

Product Images
