Surface mount aluminum electrolytic capacitor with 1500µF capacitance and 6.3V voltage rating. Features 20% tolerance, 150mΩ ESR, and 670mA ripple current. Operates from -40°C to 105°C with a 1000-hour life rating. Supplied in tape and reel packaging.
PackageRadial
Voltage6.3V
Capacitance1.5mF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Panasonic EEE-FC0J152P technical specifications.
General
Capacitance
1.5mF
Package/Case
Radial
Construction
Cylindrical
Diameter
10mm
ESR (Equivalent Series Resistance)
150mR
Height
10.2mm
Impedance
150mR
Lead Diameter
0.9mm
Lead Free
Lead Free
Lead Pitch
4.6mm
Leakage Current
3uA
Length
10.5mm
Life (Hours)
1000Hour
Material
Aluminium
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
Unknown
Ripple Current
670mA
Ripple Current (AC)
670mA
RoHS Compliant
Yes
Series
FC
Termination
SMD/SMT
Tolerance
20%
Voltage
6.3V
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Width
900um
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-FC0J152P Datasheet
Download the complete datasheet for Panasonic EEE-FC0J152P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

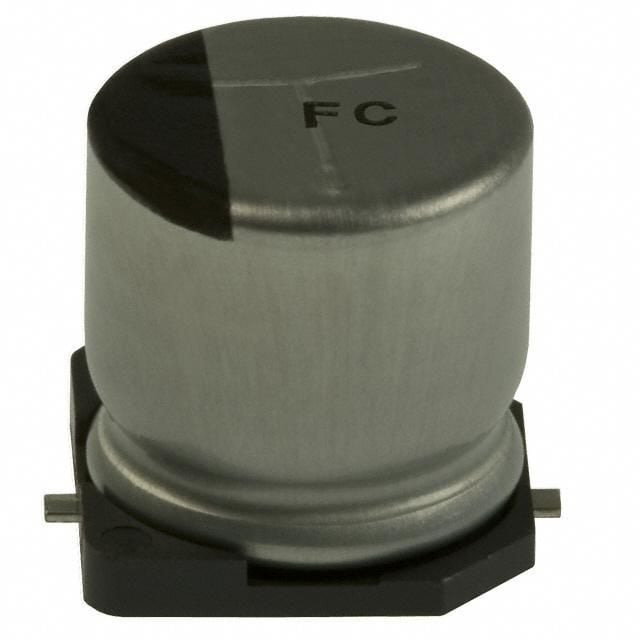

Product Images
