Surface mount aluminum electrolytic capacitor with 22µF capacitance and 16V voltage rating. Features 20% tolerance, 1.8Ω ESR, and 95mA ripple current. Operating temperature range from -40°C to 105°C, with a 1000-hour life rating. Packaged in tape and reel for automated assembly.
PackageRadial
Voltage16V
Capacitance22uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic EEE-FC1C220R technical specifications.
General
Capacitance
22uF
Package/Case
Radial
Construction
Cylindrical
Diameter
5mm
Dielectric Material
Aluminium
ESR (Equivalent Series Resistance)
1.8R
Height
5.4mm
Impedance
1.8R
Lead Free
Lead Free
Lead Length
2.2mm
Lead Pitch
1.5mm
Leakage Current
3uA
Length
5.5mm
Life (Hours)
1000Hour
Material
Aluminium
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Surface Mount, PCB
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Ripple Current
95mA
Ripple Current (AC)
95mA
RoHS Compliant
Yes
Series
FC
Termination
SMD/SMT
Tolerance
20%
Voltage
16V
Voltage Rating
16V
Voltage Rating (AC)
16V
DC Rated Voltage
16V
Width
5.3mm
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-FC1C220R Datasheet
Download the complete datasheet for Panasonic EEE-FC1C220R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

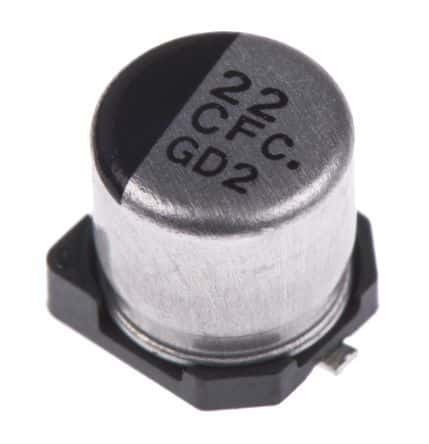

Product Images
