Surface mount aluminum electrolytic capacitor, 100µF capacitance with 20% tolerance, rated for 25V DC. Features 300mΩ ESR and 300mΩ impedance at 105°C maximum operating temperature. Cylindrical construction with radial leads, measuring 8mm in diameter and 10.2mm in height. Offers 1000 hours of life at rated voltage and temperature, with a leakage current of 3µA. RoHS compliant and lead-free.
PackageRadial
Voltage25V
Capacitance100uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Panasonic EEE-FC1E101P technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 8mm |
| Dissipation Factor | 14% |
| ESR (Equivalent Series Resistance) | 300mR |
| Height | 10.2mm |
| Height - Seated (Max) | 0.402inch |
| Impedance | 300mR |
| Lead Free | Lead Free |
| Leakage Current | 3uA |
| Length | 10.5mm |
| Life (Hours) | 1000Hour |
| Material | Aluminium |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 450mA |
| Ripple Current (AC) | 450mA |
| RoHS Compliant | Yes |
| Series | FC |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Width | 900um |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-FC1E101P Datasheet
Download the complete datasheet for Panasonic EEE-FC1E101P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

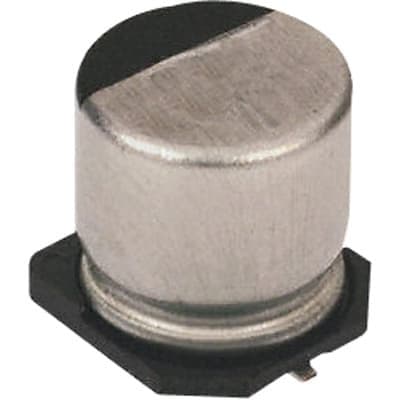

Product Images
