220µF, 25V aluminum electrolytic capacitor with 20% tolerance. Features a 10mm diameter, 10.2mm height, and 4.6mm lead pitch. Offers 150mΩ ESR and impedance, with a 670mA ripple current rating. Operates from -40°C to 105°C and is RoHS compliant. Surface mountable in a cylindrical radial package.
PackageRadial
Voltage25V
Storage10.2mm
Capacitance220uF
Quick Jump:
Technical Specifications
Panasonic EEE-FC1E221P technical specifications.
General
Capacitance
220uF
Package/Case
Radial
Construction
Cylindrical
Diameter
10mm
ESR (Equivalent Series Resistance)
150mR
Height
10.2mm
Height - Seated (Max)
0.402inch
Impedance
150mR
Lead Diameter
0.9mm
Lead Free
Lead Free
Lead Pitch
4.6mm
Leakage Current
3uA
Length
10.5mm
Life (Hours)
1000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
670mA
Ripple Current (AC)
670mA
RoHS Compliant
Yes
Series
FC
Size
10.2mm
Termination
SMD/SMT
Tolerance
20%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Width
900um
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-FC1E221P Datasheet
Download the complete datasheet for Panasonic EEE-FC1E221P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

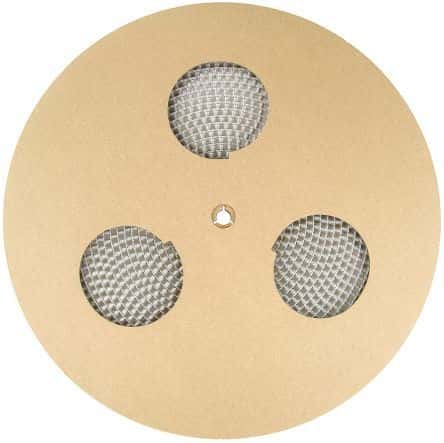

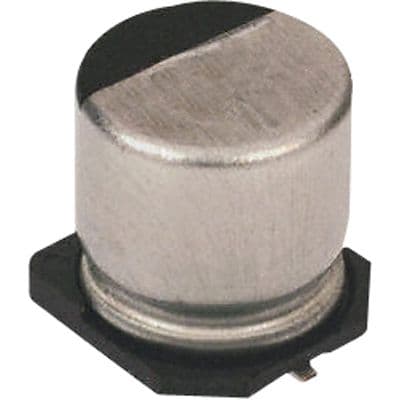

Product Images
