Surface mount aluminum electrolytic capacitor, 6.8µF capacitance, 25V voltage rating, and 20% tolerance. Features a 3Ω maximum impedance and ESR, 60mA ripple current, and 3µA leakage current. Operates from -40°C to 105°C with a 1000-hour life expectancy. Radial construction in a cylindrical package with SMD/SMT termination.
PackageRadial
Voltage25V
Capacitance6.8uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Panasonic EEE-FC1E6R8R technical specifications.
General
| Capacitance | 6.8uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 4mm |
| ESR (Equivalent Series Resistance) | 3R |
| Height | 5.4mm |
| Height - Seated (Max) | 0.213inch |
| Impedance | 3R |
| Lead Free | Lead Free |
| Leakage Current | 3uA |
| Length | 5.5mm |
| Life (Hours) | 1000Hour |
| Material | Aluminium |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 60mA |
| Ripple Current (AC) | 60mA |
| RoHS Compliant | Yes |
| Series | FC |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Width | 650um |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-FC1E6R8R Datasheet
Download the complete datasheet for Panasonic EEE-FC1E6R8R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

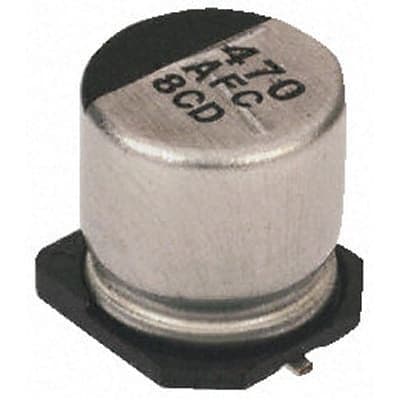

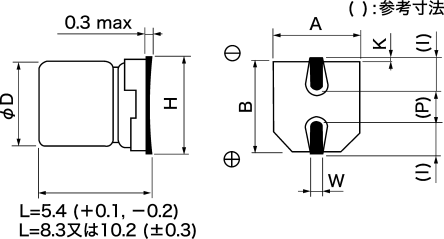

Product Images
