220µF, 35V radial aluminum electrolytic capacitor with 20% tolerance. Features 150mΩ ESR and 670mA ripple current at 105°C. Surface mountable with a 10mm diameter and 10.2mm height. Operating temperature range from -40°C to 105°C.
PackageRadial
Voltage35V
Capacitance220uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEE-FC1V221AP technical specifications.
General
Capacitance
220uF
Package/Case
Radial
Construction
Cylindrical
Diameter
10mm
Dielectric Material
Aluminium
ESR (Equivalent Series Resistance)
150mR
Height
10.2mm
Height - Seated (Max)
0.402inch
Impedance
150mR
Lead Free
Lead Free
Lead Length
3.5mm
Lead Pitch
4.6mm
Leakage Current
3uA
Length
10.5mm
Life (Hours)
1000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
670mA
Ripple Current (AC)
670mA
RoHS Compliant
Yes
Series
FC
Termination
SMD/SMT
Tolerance
20%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Width
10.3mm
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-FC1V221AP Datasheet
Download the complete datasheet for Panasonic EEE-FC1V221AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

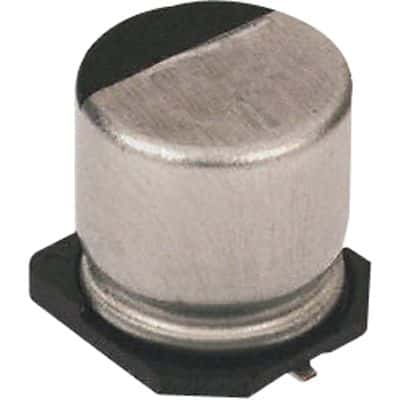

Product Images
