Surface mount aluminum electrolytic capacitor offering 100µF capacitance with a 6.3V DC voltage rating and 20% tolerance. Features a 5mm diameter, 5.8mm height, and 6.5mm width in a cylindrical construction. Rated for 160mA ripple current, 2000 hours of life at 105°C, and exhibits 700mΩ ESR. This lead-free, RoHS-compliant component is supplied on tape and reel.
PackageRadial
Voltage6.3V
Capacitance100uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Panasonic EEE-FK0J101UR technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Contact Plating | Tin |
| Diameter | 5mm |
| Dissipation Factor | 26% |
| ESR (Equivalent Series Resistance) | 700mR |
| Height | 5.8mm |
| Impedance | 700mR |
| Lead Free | Lead Free |
| Leakage Current | 3uA |
| Length | 5.8mm |
| Life (Hours) | 2000Hour |
| Material | Aluminium |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 160mA |
| Ripple Current (AC) | 160mA |
| RoHS Compliant | Yes |
| Series | FK |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 6.3V |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
| Width | 6.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-FK0J101UR Datasheet
Download the complete datasheet for Panasonic EEE-FK0J101UR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

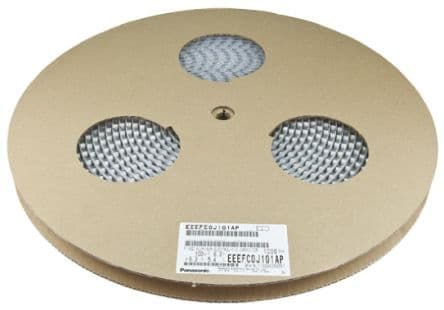

Product Images
