Surface mount aluminum electrolytic capacitor with 680µF capacitance and 10V DC rating. Features 20% tolerance, 160mΩ ESR, and 600mA ripple current. Operates from -55°C to 105°C with a 2000-hour life expectancy. Cylindrical construction with radial leads, measuring 8mm in diameter and 10.2mm in height. RoHS compliant.
PackageRadial
Voltage10V
Capacitance680uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Panasonic EEE-FK1A681P technical specifications.
General
| Capacitance | 680uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 8mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 160mR |
| Height | 10.2mm |
| Height - Seated (Max) | 0.402inch |
| Impedance | 160mR |
| Lead Diameter | 0.9mm |
| Lead Free | Lead Free |
| Lead Pitch | 3.1mm |
| Leakage Current | 3uA |
| Length | 10.2mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |

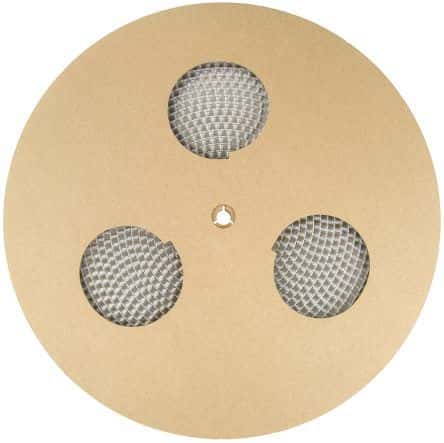

| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 600mA |
| Ripple Current (AC) | 600mA |
| RoHS Compliant | Yes |
| Series | FK |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
| Width | 10mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-FK1A681P Datasheet
Download the complete datasheet for Panasonic EEE-FK1A681P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
