Surface mount aluminum electrolytic capacitor with 100µF capacitance and 16V voltage rating. Features a 20% tolerance, 360mΩ ESR, and 240mA ripple current. Operates from -55°C to 105°C with a 2000-hour life expectancy. Cylindrical construction with radial leads, suitable for PCB mounting.
PackageRadial
Voltage16V
Capacitance100uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic EEE-FK1C101P technical specifications.
General
Capacitance
100uF
Package/Case
Radial
Construction
Cylindrical
Diameter
6.3mm
Dielectric Material
Aluminium
ESR (Equivalent Series Resistance)
360mR
Height
5.8mm
Height - Seated (Max)
0.24inch
Impedance
360mR
Lead Free
Lead Free
Leakage Current
3uA
Length
5.8mm
Life (Hours)
2000Hour
Material
Aluminium
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Ripple Current
240mA
Ripple Current (AC)
240mA
RoHS Compliant
Yes
Series
FK
Termination
SMD/SMT
Tolerance
20%
Voltage
16V
Voltage Rating
16V
Voltage Rating (AC)
16V
DC Rated Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-FK1C101P Datasheet
Download the complete datasheet for Panasonic EEE-FK1C101P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

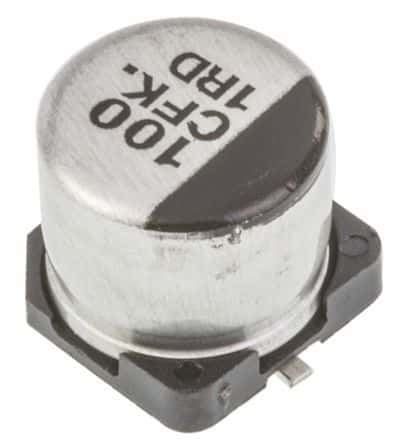

Product Images
