220µF, 16V aluminum electrolytic capacitor with 20% tolerance. Features a radial, cylindrical construction with a 6.2mm height, 8mm diameter, and 8.3mm width. Offers 260mΩ ESR and impedance, 300mA ripple current, and 3µA leakage current. Rated for 2000 hours at 105°C, with an operating temperature range of -55°C to 105°C. Designed for surface mount (SMD/SMT) PCB applications, compliant with RoHS and AEC-Q200 standards.
PackageRadial
Voltage16V
Capacitance220uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic EEE-FK1C221P technical specifications.
General
Capacitance
220uF
Package/Case
Radial
Construction
Cylindrical
Diameter
8mm
Dielectric Material
Aluminium
Dissipation Factor
16%
ESR (Equivalent Series Resistance)
260mR
Height
6.2mm
Impedance
260mR
Lead Free
Lead Free
Leakage Current
3uA
Length
6.2mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Ripple Current
300mA
Ripple Current (AC)
300mA
RoHS Compliant
Yes
Series
FK
Termination
SMD/SMT
Tolerance
20%
Voltage
16V
Voltage Rating
16V
Voltage Rating (AC)
16V
DC Rated Voltage
16V
Width
8.3mm
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-FK1C221P Datasheet
Download the complete datasheet for Panasonic EEE-FK1C221P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

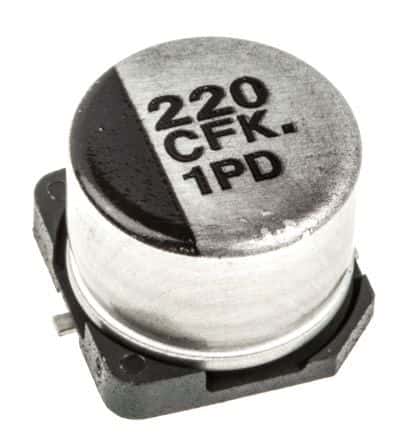

Product Images
