Aluminum electrolytic capacitor, 100µF capacitance, 25V DC rated voltage, 20% tolerance. Features 300mA ripple current, 260mΩ ESR, and 25µA leakage current. Operates from -55°C to 105°C with a 2000-hour life expectancy. Surface mount package with 8mm diameter, 6.2mm height, and 2.2mm lead pitch.
PackageRadial
Voltage25V
Capacitance100uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Panasonic EEE-FK1E101AP technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 8mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 260mR |
| Height | 6.2mm |
| Height - Seated (Max) | 0.244inch |
| Impedance | 260mR |
| Lead Free | Lead Free |
| Lead Length | 3.4mm |
| Lead Pitch | 2.2mm |
| Leakage Current | 25uA |
| Length | 6.2mm |
| Life (Hours) | 2000Hour |
| Material | Aluminium |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 300mA |
| Ripple Current (AC) | 300mA |
| RoHS Compliant | Yes |
| Series | FK |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Width | 8.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-FK1E101AP Datasheet
Download the complete datasheet for Panasonic EEE-FK1E101AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

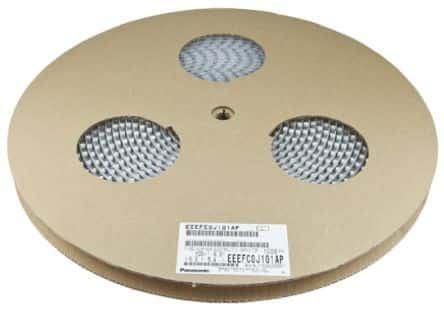

Product Images
