100µF, 25V aluminum electrolytic capacitor with 20% tolerance, designed for surface mount applications. Features a 340mΩ ESR and 280mA ripple current rating. Operates across a temperature range of -55°C to 105°C with a rated life of 2000 hours. This radial, cylindrical component has a 6.3mm diameter and 7.7mm height, with a 1.8mm lead pitch.
PackageRadial
Voltage25V
Capacitance100uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Panasonic EEE-FK1E101XP technical specifications.
General
Capacitance
100uF
Package/Case
Radial
Construction
Cylindrical
Diameter
6.3mm
ESR (Equivalent Series Resistance)
340mR
Height
7.7mm
Height - Seated (Max)
0.303inch
Impedance
340mR
Lead Diameter
0.65mm
Lead Free
Lead Free
Lead Pitch
1.8mm
Leakage Current
3uA
Length
7.7mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Ripple Current
280mA
Ripple Current (AC)
280mA
RoHS Compliant
Yes
Series
FK
Termination
SMD/SMT
Tolerance
20%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Width
7.8mm
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-FK1E101XP Datasheet
Download the complete datasheet for Panasonic EEE-FK1E101XP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

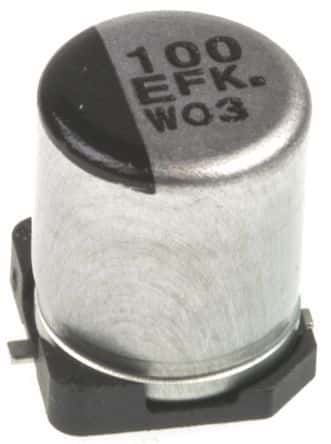

Product Images
