Aluminum electrolytic capacitor, 150µF capacitance, 25V DC rated voltage, with a ±20% tolerance. Features 600mA ripple current, 160mΩ ESR, and 3µA leakage current. Operates from -55°C to 105°C, with a 2000-hour life rating. Surface mount, radial construction, 8mm diameter, 10.2mm height, 3.1mm lead pitch, and 0.9mm lead diameter. Compliant with RoHS and AEC-Q200 automotive standards. Packaged in tape and reel.
PackageRadial
Voltage25V
Capacitance150uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Panasonic EEE-FK1E151P technical specifications.
General
| Capacitance | 150uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 8mm |
| Dissipation Factor | 14% |
| ESR (Equivalent Series Resistance) | 160mR |
| Height | 10.2mm |
| Impedance | 160mR |
| Lead Diameter | 0.9mm |
| Lead Free | Lead Free |
| Lead Pitch | 3.1mm |
| Leakage Current | 3uA |
| Length | 10.2mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 600mA |
| Ripple Current (AC) | 600mA |
| RoHS Compliant | Yes |
| Series | FK |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Width | 10mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-FK1E151P Datasheet
Download the complete datasheet for Panasonic EEE-FK1E151P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

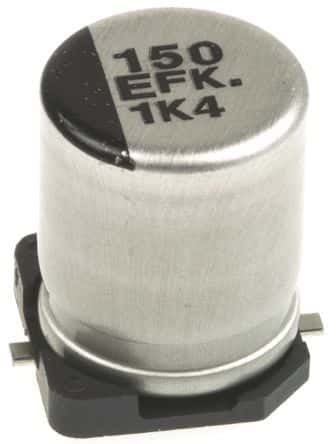

Product Images
