Surface mount aluminum electrolytic capacitor with 22µF capacitance and 25V voltage rating. Features a 20% tolerance, 700mΩ ESR, and 160mA ripple current. Operates from -55°C to 105°C with a 2000-hour life expectancy. Radial construction in a 5mm diameter, 5.8mm height cylindrical package. Lead-free and RoHS compliant.
PackageRadial
Voltage25V
Capacitance22uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Panasonic EEE-FK1E220R technical specifications.
General
Capacitance
22uF
Package/Case
Radial
Construction
Cylindrical
Diameter
5mm
Dielectric Material
Aluminium
ESR (Equivalent Series Resistance)
700mR
Height
5.8mm
Impedance
700mR
Lead Diameter
0.65mm
Lead Free
Lead Free
Lead Pitch
1.5mm
Leakage Current
3uA
Length
5.8mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1000

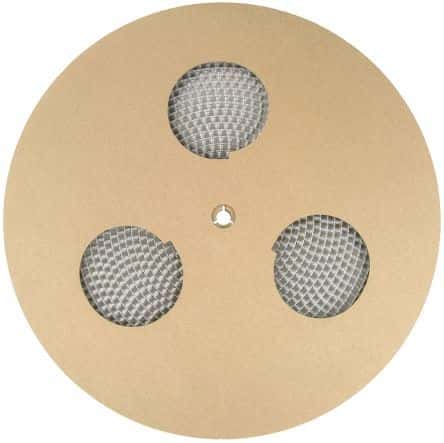

Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Ripple Current
160mA
Ripple Current (AC)
160mA
RoHS Compliant
Yes
Series
FK
Termination
SMD/SMT
Tolerance
20%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Width
6.5mm
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-FK1E220R Datasheet
Download the complete datasheet for Panasonic EEE-FK1E220R to view detailed technical specifications.
