Radial aluminum electrolytic capacitor, 220µF capacitance, 25V voltage rating. Features 160mΩ ESR and 600mA ripple current. Operates from -55°C to 105°C with a 2000-hour life expectancy. Cylindrical construction with SMD/SMT termination, supplied in tape and reel packaging.
PackageRadial
Voltage25V
Storage10.2mm
Capacitance220uF
Quick Jump:
Technical Specifications
Panasonic EEE-FK1E221P technical specifications.
General
Capacitance
220uF
Package/Case
Radial
Construction
Cylindrical
Diameter
8mm
Dielectric Material
Aluminium
ESR (Equivalent Series Resistance)
160mR
Height
10.2mm
Impedance
160mR
Lead Free
Lead Free
Leakage Current
3uA
Length
10.2mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Ripple Current
600mA
Ripple Current (AC)
600mA
RoHS Compliant
Yes
Series
FK
Size
10.2mm
Termination
SMD/SMT
Tolerance
20%
Voltage
25V
Voltage Rating
25V
Voltage Rating (AC)
25V
DC Rated Voltage
25V
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-FK1E221P Datasheet
Download the complete datasheet for Panasonic EEE-FK1E221P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

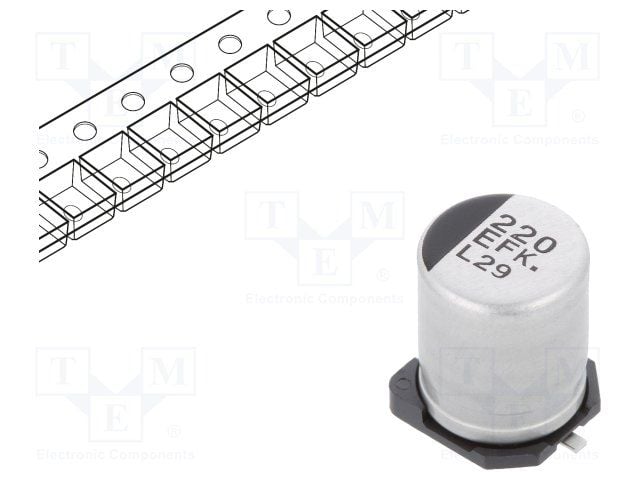

Product Images
