Aluminum electrolytic capacitor, 47µF capacitance, 25V voltage rating, and 20% tolerance. Features a 240mA ripple current, 360mΩ ESR, and 11.7µA leakage current. Designed for surface mount applications with a cylindrical construction, measuring 6.3mm diameter and 5.8mm height. Operates within a temperature range of -55°C to 105°C, offering 2000 hours of life. Compliant with RoHS and AEC-Q200 automotive standards.
PackageRadial
Voltage25V
Capacitance47uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Panasonic EEE-FK1E470AP technical specifications.
General
Capacitance
47uF
Package/Case
Radial
Construction
Cylindrical
Diameter
6.3mm
Dielectric Material
Aluminium
ESR (Equivalent Series Resistance)
360mR
Height
5.8mm
Impedance
360mR
Lead Free
Lead Free
Lead Length
2.6mm
Lead Pitch
1.8mm
Leakage Current
11.7uA
Length
5.8mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Ripple Current
240mA
Ripple Current (AC)
240mA
RoHS Compliant
Yes
Series
FK
Termination
SMD/SMT
Tolerance
20%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Width
6.6mm
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-FK1E470AP Datasheet
Download the complete datasheet for Panasonic EEE-FK1E470AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

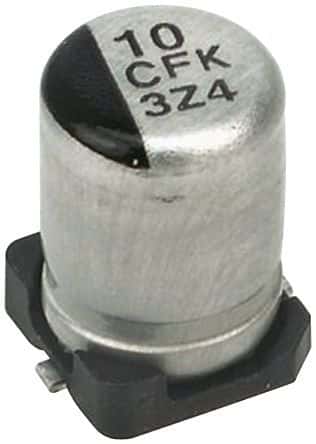

Product Images
