33µF, 50V aluminum electrolytic capacitor with 20% tolerance. Features a radial, cylindrical construction in an 8mm diameter, 6.2mm height package. Offers 680mΩ ESR and 195mA ripple current at 105°C max operating temperature. Surface mountable with a 2.2mm lead pitch, this RoHS compliant component is supplied on tape and reel.
PackageRadial
Voltage50V
Capacitance33uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Panasonic EEE-FK1H330P technical specifications.
General
| Capacitance | 33uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 8mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 10% |
| ESR (Equivalent Series Resistance) | 680mR |
| Height | 6.2mm |
| Height - Seated (Max) | 0.244inch |
| Impedance | 680mR |
| Lead Diameter | 0.65mm |
| Lead Free | Lead Free |
| Lead Pitch | 2.2mm |
| Leakage Current | 3uA |
| Length | 6.2mm |
| Life (Hours) | 2000Hour |
| Material | Aluminium |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 195mA |
| Ripple Current (AC) | 195mA |
| RoHS Compliant | Yes |
| Series | FK |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| Voltage Rating (AC) | 50V |
| DC Rated Voltage | 50V |
| Width | 8.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-FK1H330P Datasheet
Download the complete datasheet for Panasonic EEE-FK1H330P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

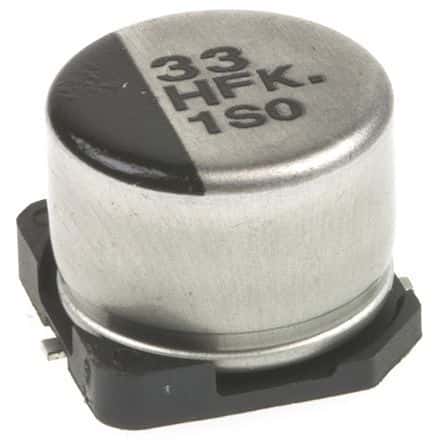

Product Images
