Aluminum electrolytic capacitor, 3.3µF capacitance, 80V DC rated voltage, 20% tolerance. Features a 5mm diameter, 5.8mm height, and 1.5mm lead pitch. Surface mountable with a 25mA ripple current rating and 2000-hour life at 105°C. Low ESR of 5R, 5R impedance, and 3µA leakage current.
PackageRadial
Voltage80V
Capacitance3.3uF
Voltage Rating80V
Quick Jump:
Technical Specifications
Panasonic EEE-FK1K3R3R technical specifications.
General
Capacitance
3.3uF
Package/Case
Radial
Construction
Cylindrical
Diameter
5mm
ESR (Equivalent Series Resistance)
5R
Height
5.8mm
Height - Seated (Max)
0.228inch
Impedance
5R
Lead Diameter
0.65mm
Lead Free
Lead Free
Lead Pitch
1.5mm
Leakage Current
3uA
Length
5.8mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Ripple Current
25mA
Ripple Current (AC)
25mA
RoHS Compliant
Yes
Series
FK
Termination
SMD/SMT
Tolerance
20%
Voltage
80V
Voltage Rating
80V
DC Rated Voltage
80V
Width
6.5mm
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-FK1K3R3R Datasheet
Download the complete datasheet for Panasonic EEE-FK1K3R3R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

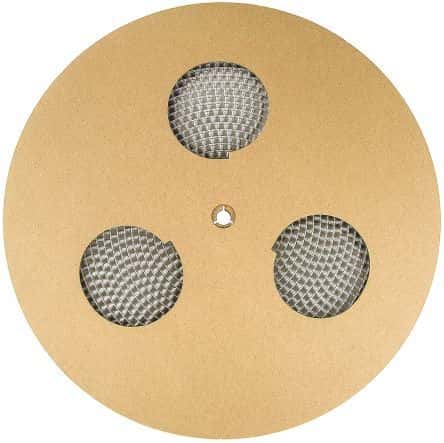

Product Images
